By Manufacturer
Allied Telesis

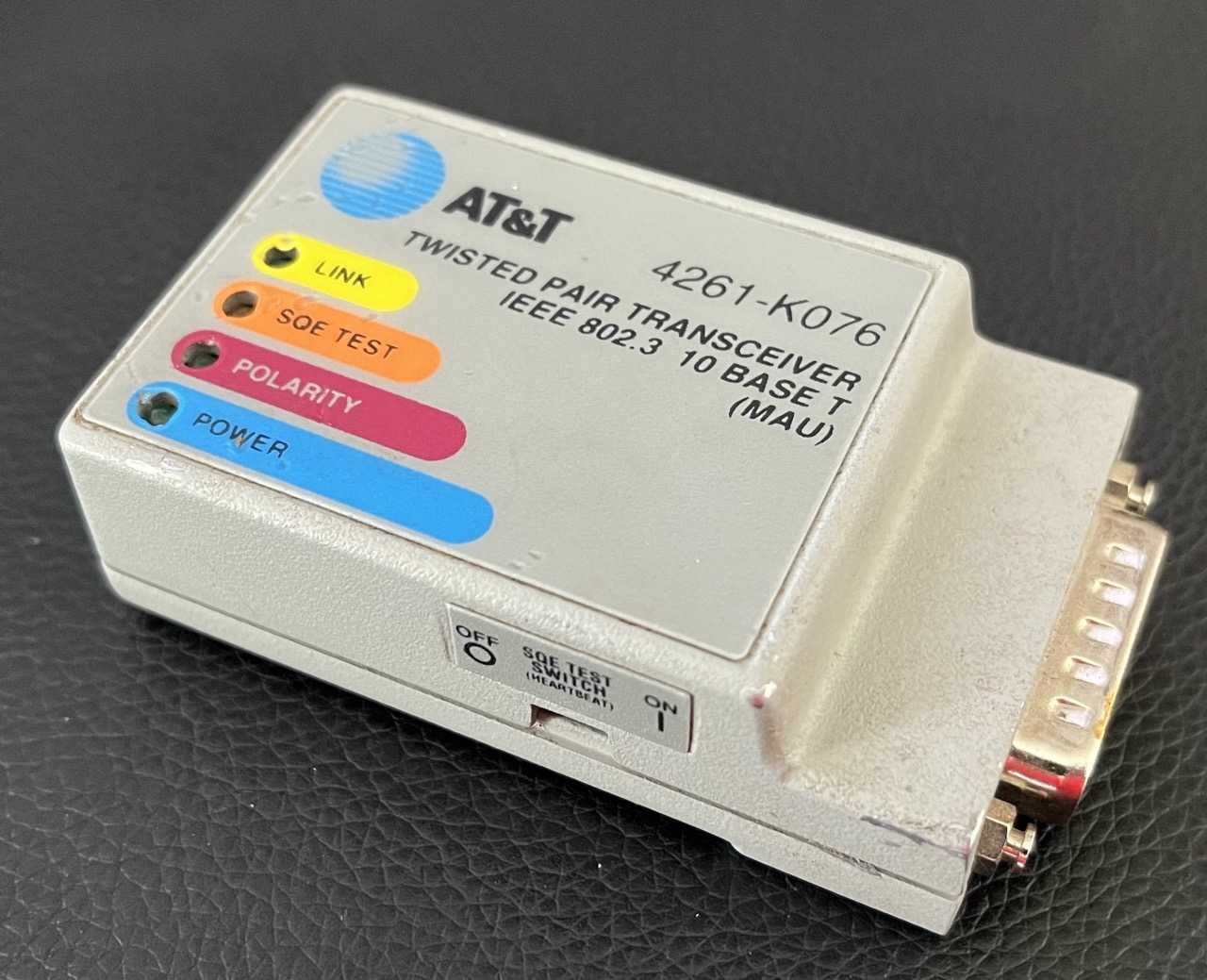

CentreCOM 210TS (10base-T)

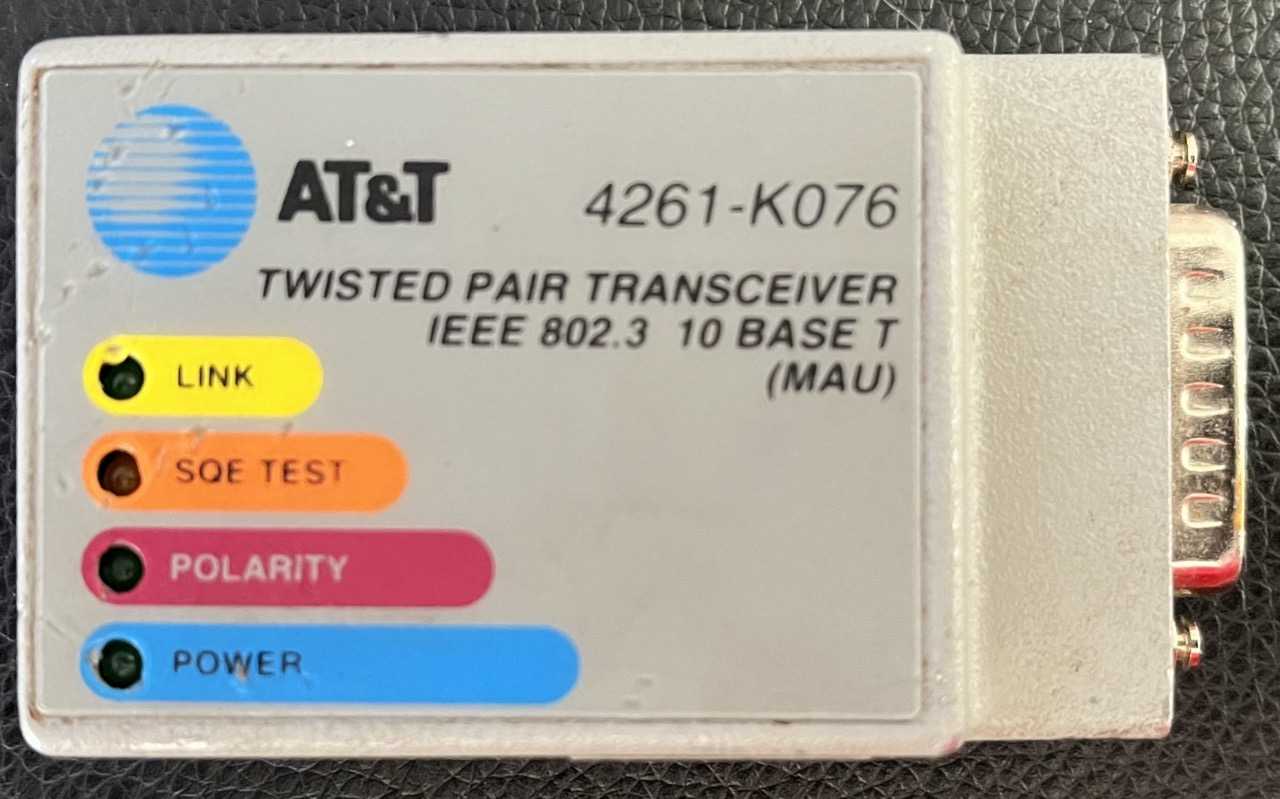

TWISTERD PAIR TRANSCEIVER IEEE 802.3 10 BASE T (MAU)

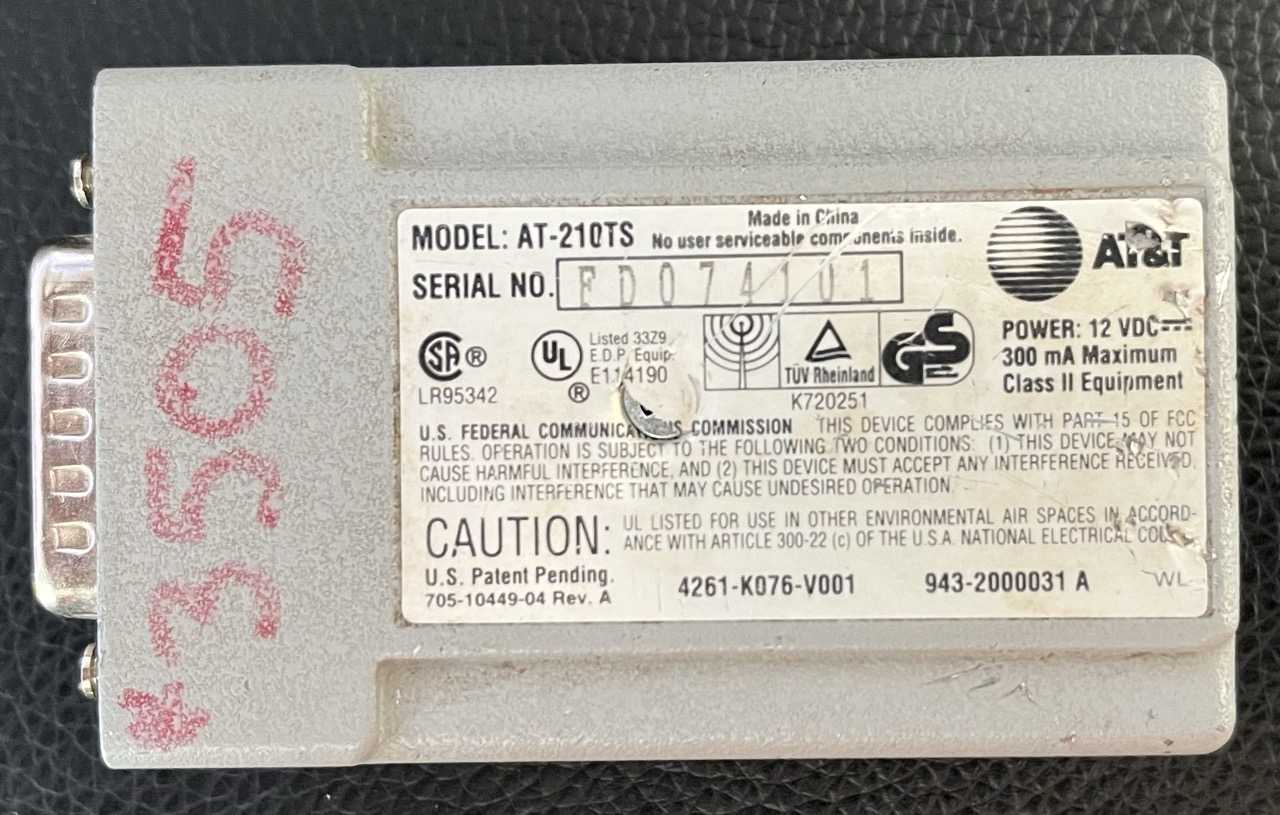

Rebranded as:
- AT&T 4261-K076

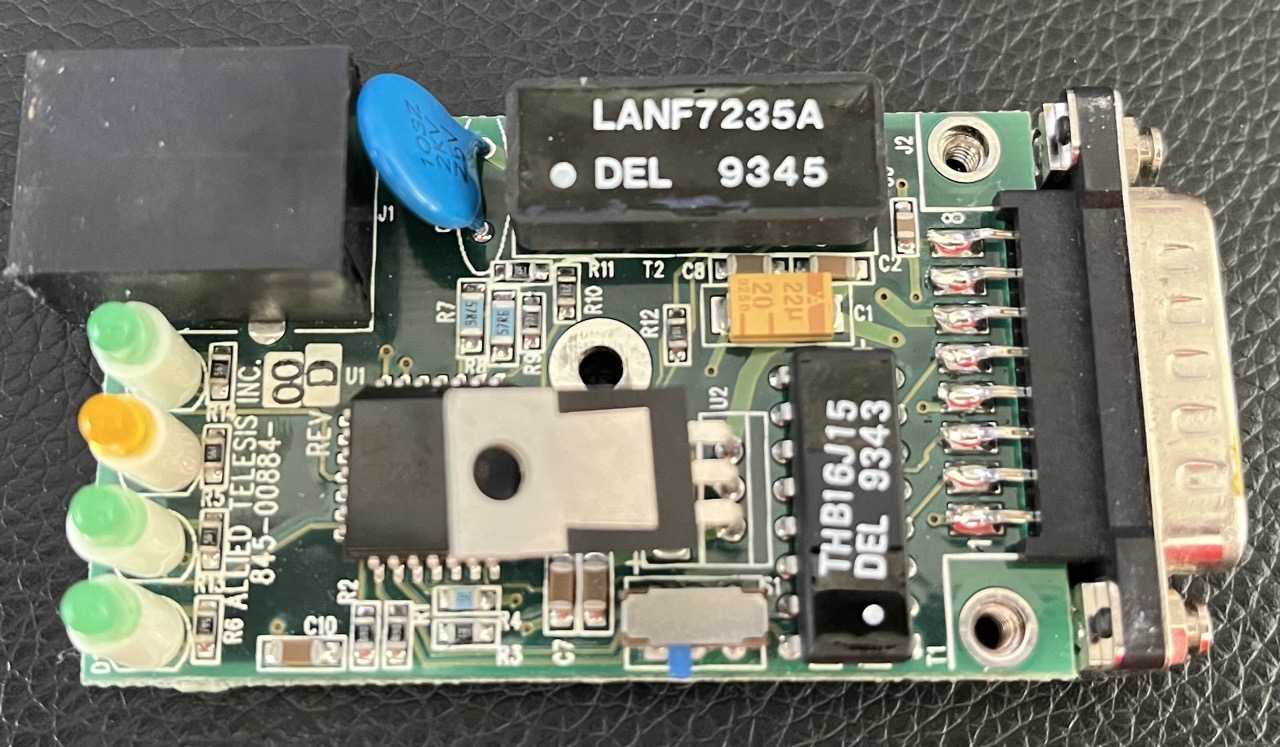

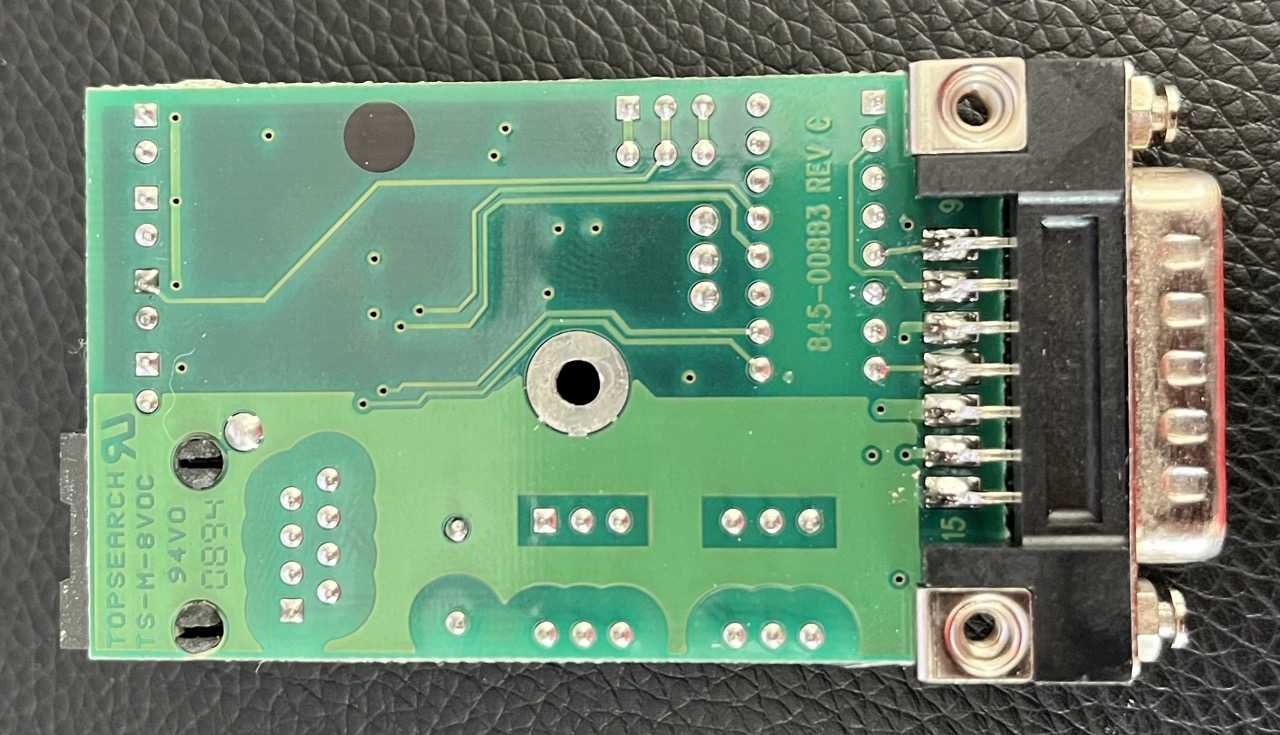

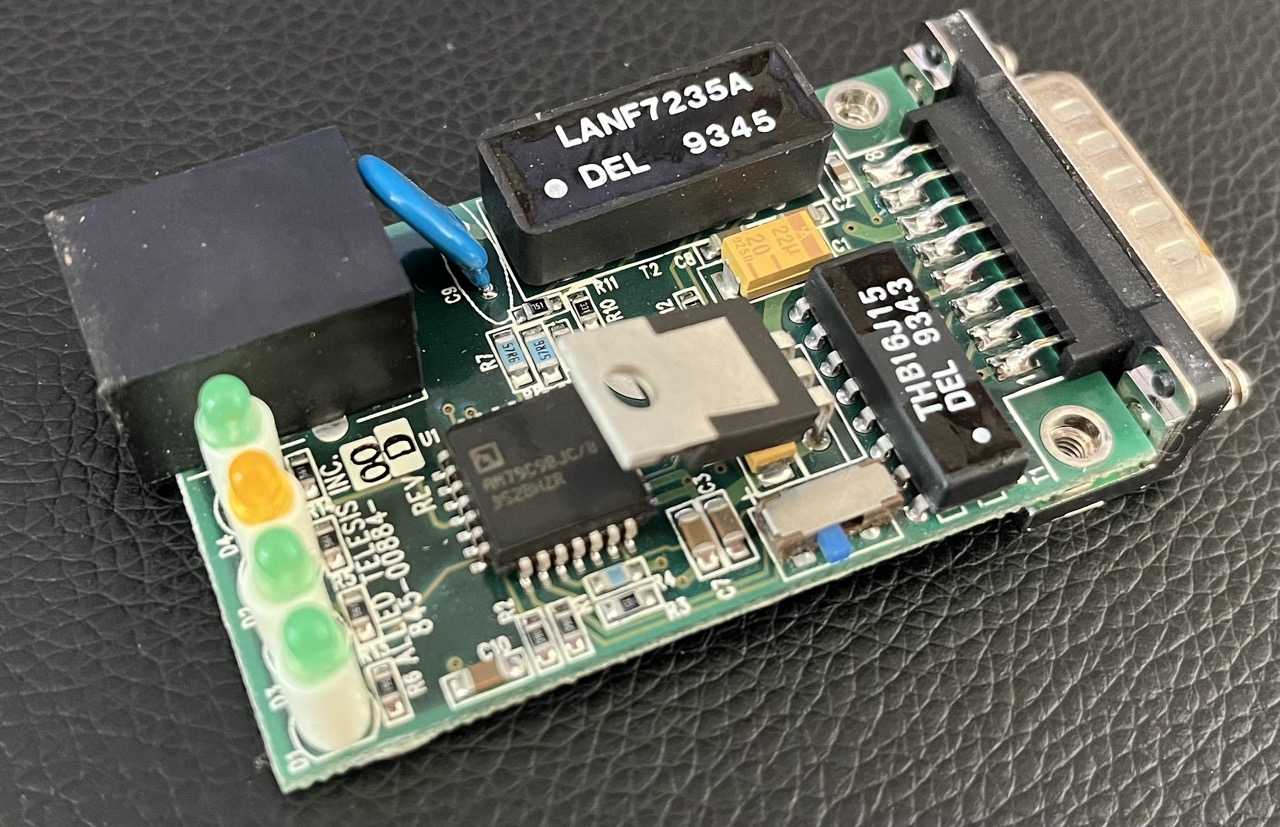

Majour components
- AM79C98JC/B - Twister Pair Ethernet Transceiver (TPEX), PLCC
- Delta LANF7235A - Ethernet Transformer
- Delta THB16J15 - Ethernet Transformer, 1:1, 80-130uH, Hi-Pot 2000 Vrms
- LM340T-5.0 - 5V Positive Voltage Regulator
DEC
Resources:
H4000
AUI to 10base-5 (Thicknet)

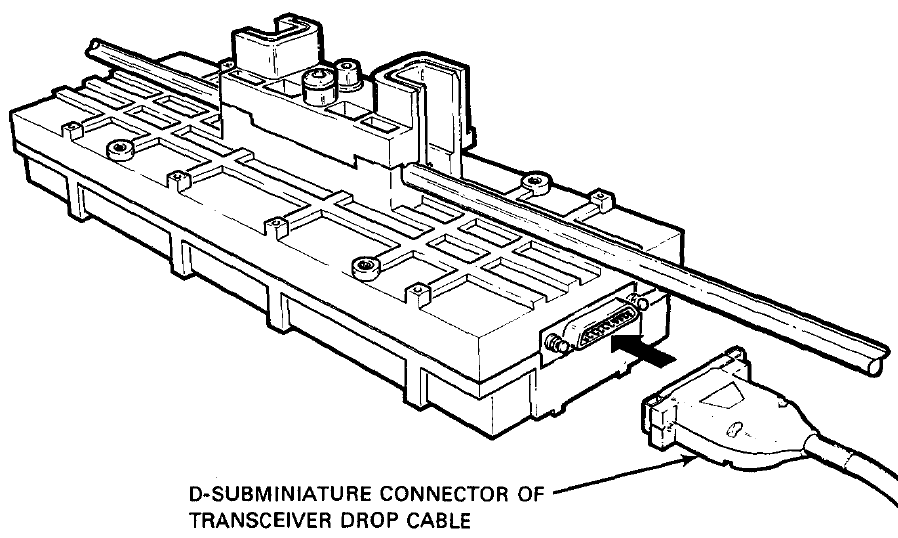

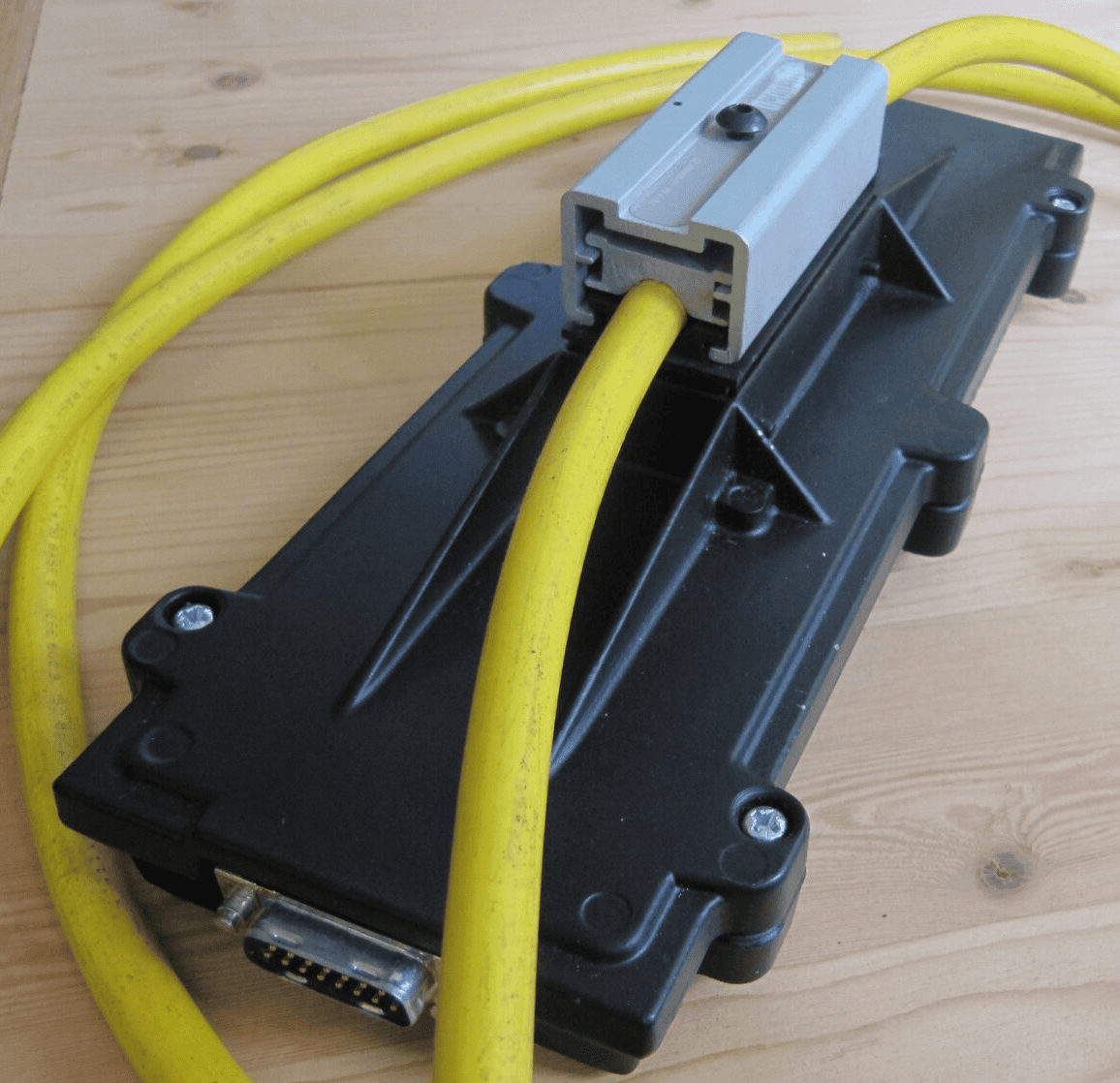

Available in two versions: One with a fixed tap and one with a removable tap; both have the same model number. source
H4005
AUI to 10base-5 (Thicknet)
DEFLM-AA

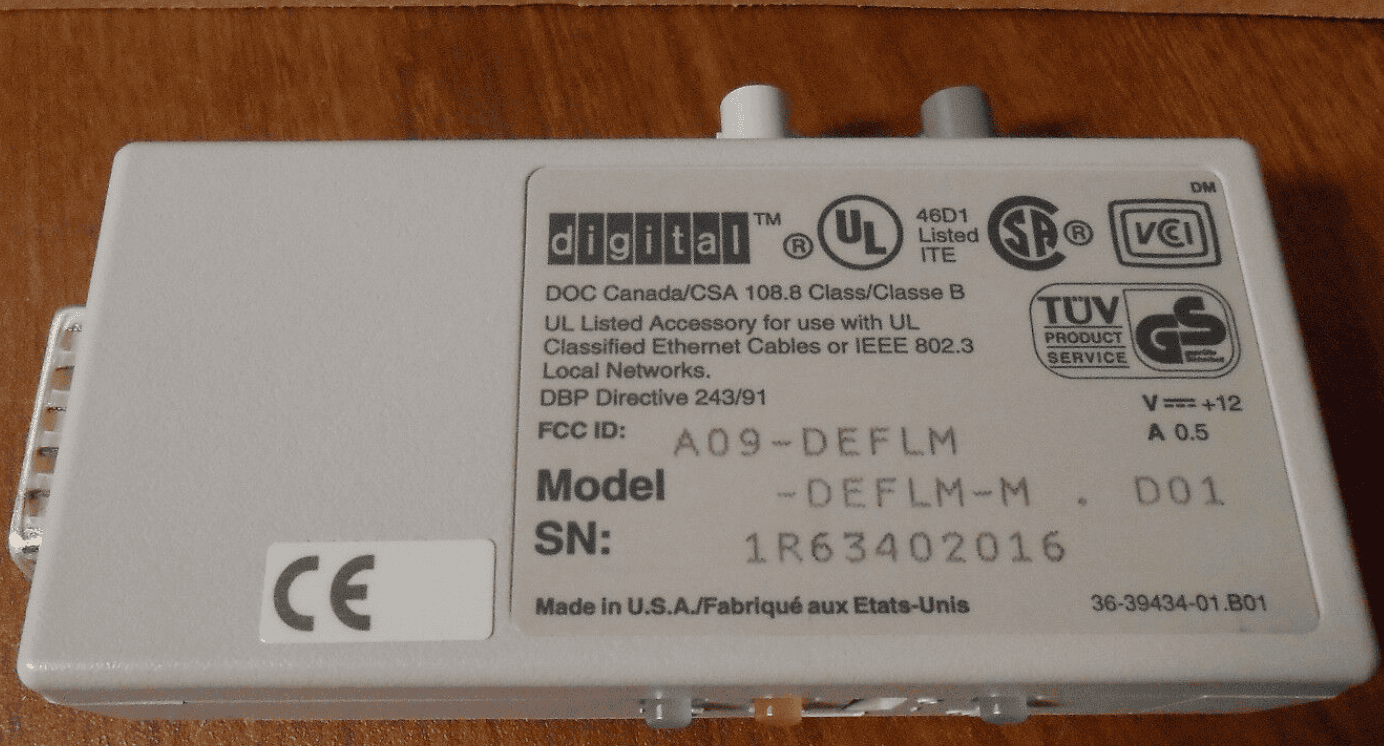

AUI to 10base-FL (Fibre Link). Image from [[https://www.ebay.com/itm/251524955029
DESTA

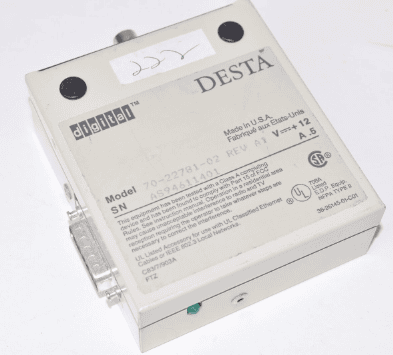

10base-2 (”ThinWire”) to AUI transceiver.
Image from: ebay
DELNI-AA / DELNI-BA
Oddball ethernet hub with 9 AUI connectors alone; no 10base-T, no 10base-2.

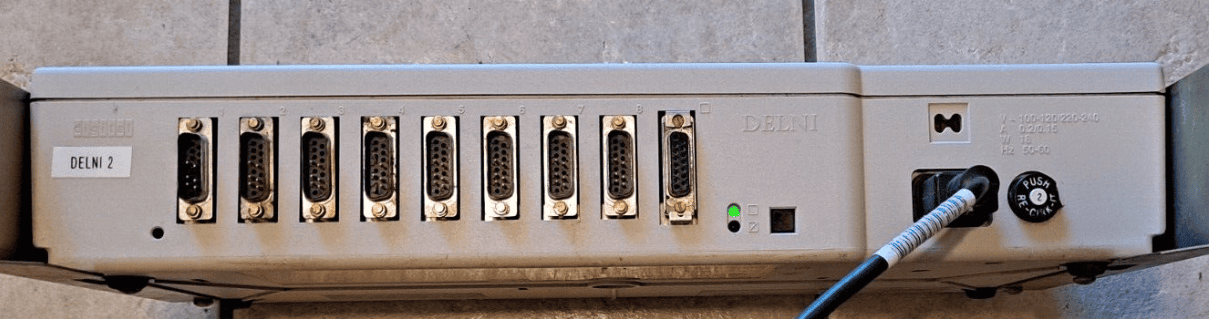

Only the last AUI connector (the “Global” connector, number 9, with a Socket/Female connector) is designed to accept an AUI transceiver module. The remaining 8 are to to be directly connected to the AUI connector of a computer or router using a DE-15 extension (“male-to-female”) cable.
In addition, the DELNI unit does not require or use the -15 V that is normally supplied by the Ethernet controller or the auxiliary power supply (DEXPS). The DELNI unit does, however, supply -15 V to its GLOBAL connector for use by a connected Ethernet transceiver. — http://www.bitsavers.org/pdf/dec/comm/EK-CMIV6-RM-005_Communications_Options_Minireference_Manual_Vol6_Aug88.pdf page “DELNI-1”
Image from https://www.ebay.com/itm/314803737212?itmmeta=01HW433EMFBE3XR0JP0PGK4V96
DESPR-EE
“ThinWire Ethernet Singleport Repeater - 150”
A 10base-2 to AUI converter.
DEMPR-AA

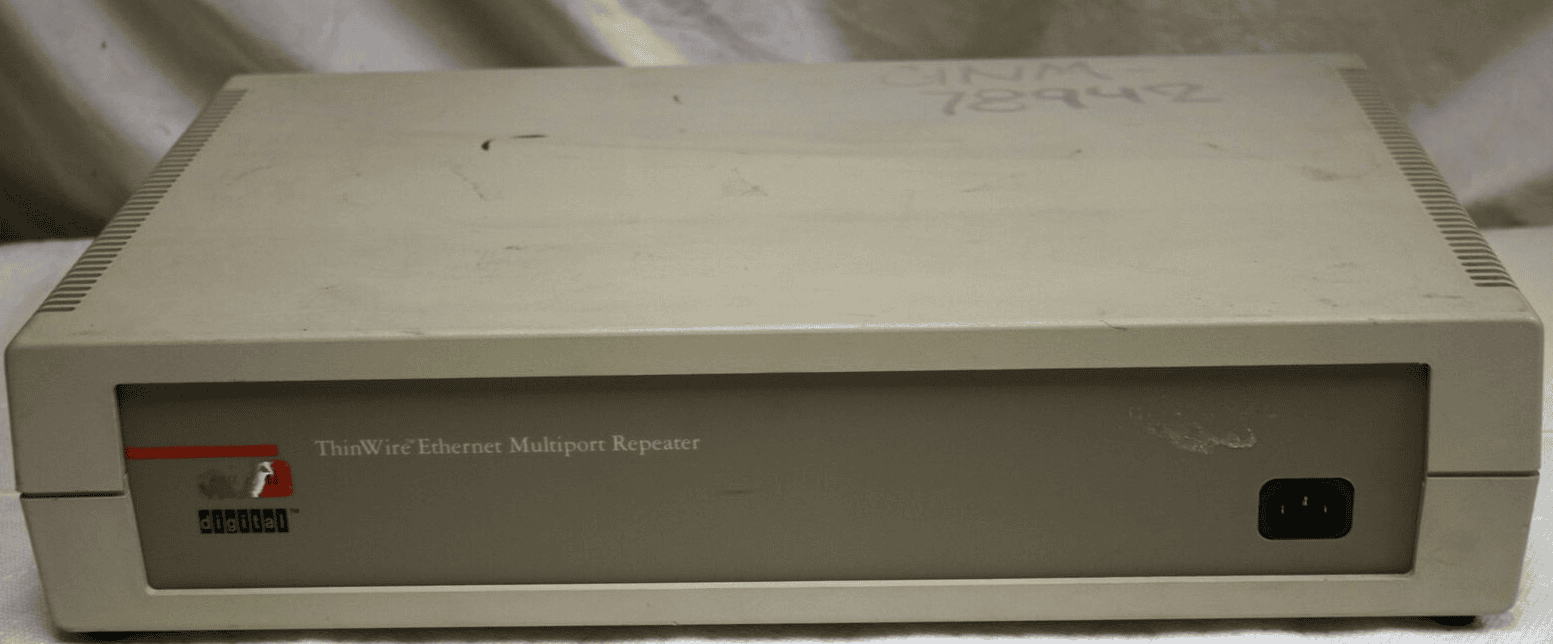

ThinWire Ethernet Multiport Repeater

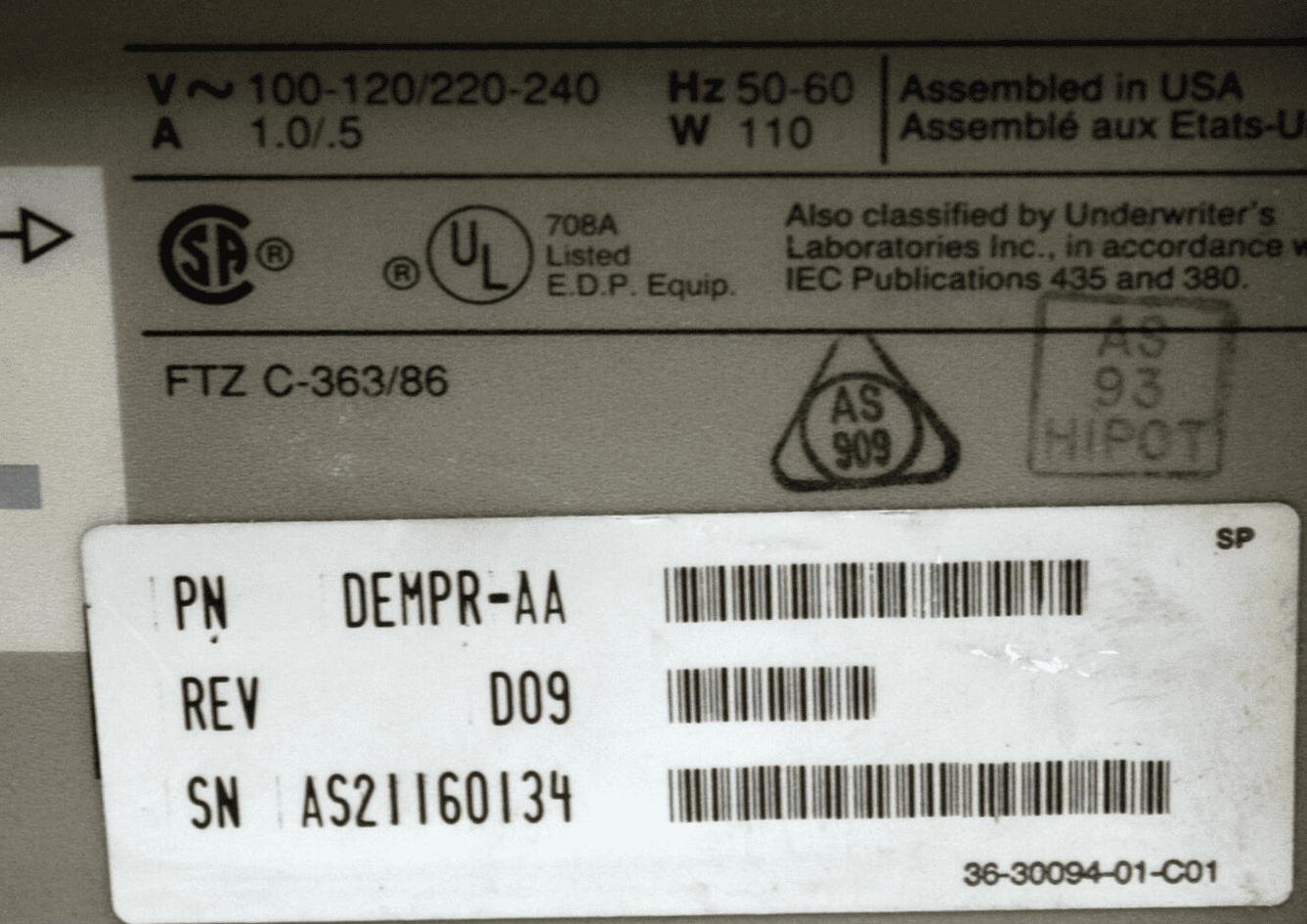

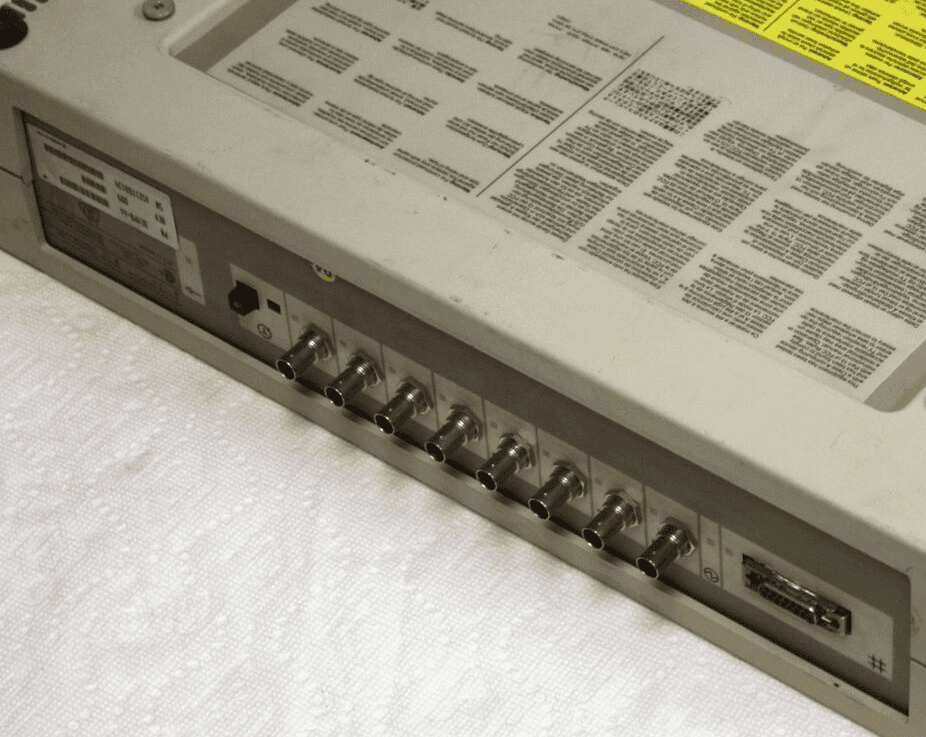

Ethernet hub with 8 10base-2 ports and 1 AUI.
Images from https://www.ebay.com/itm/143208411642
DEMSA-AA

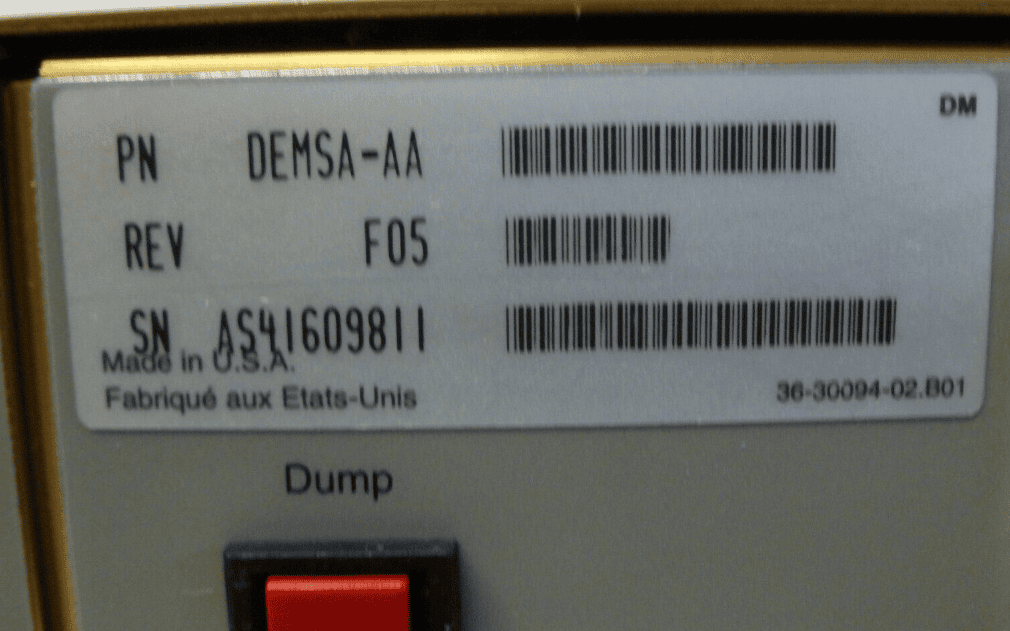

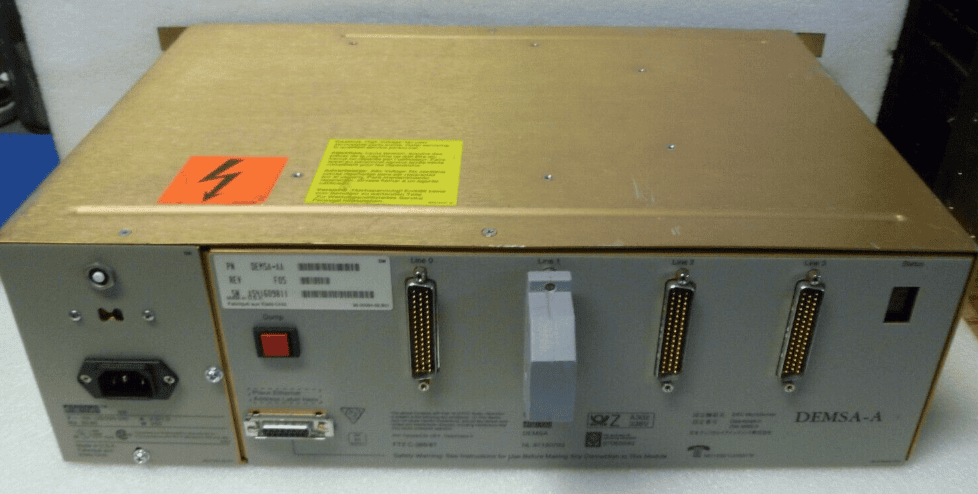

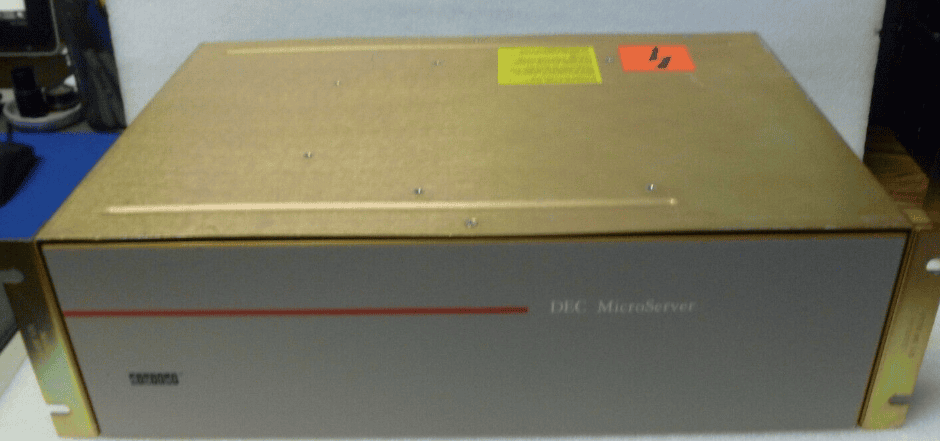

DEC Microserver. -AA variant is 120v, -AN is 240v.
Can be used as a multiprotocol router, using one of
- DECrouter 2000 V 1.0
- X25router 2000 V1.0
- DECnet/SNA Gateway-ST V 1.0
Images from https://www.ebay.com/itm/234374568328
DETPM
AUI to 10Base-T
H3350
AUI to twisted-pair (Rj45/8P8C?)
DECXM
AUI to 10base-2 (”Thinwire”) Transceiver
Lantronix

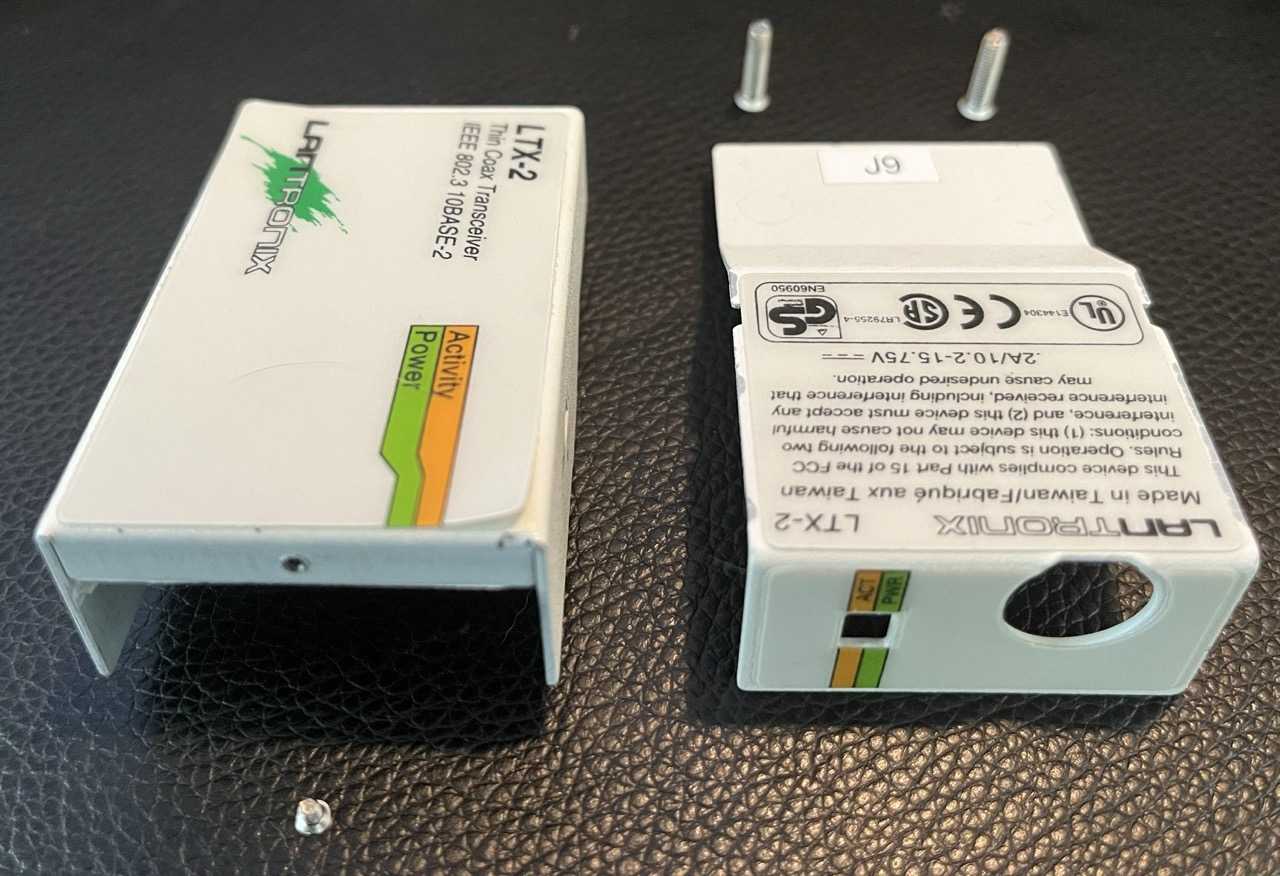

LTX-2 (10base-2)
Thin Coax Transceiver IEEE 802.3 10BASE-2

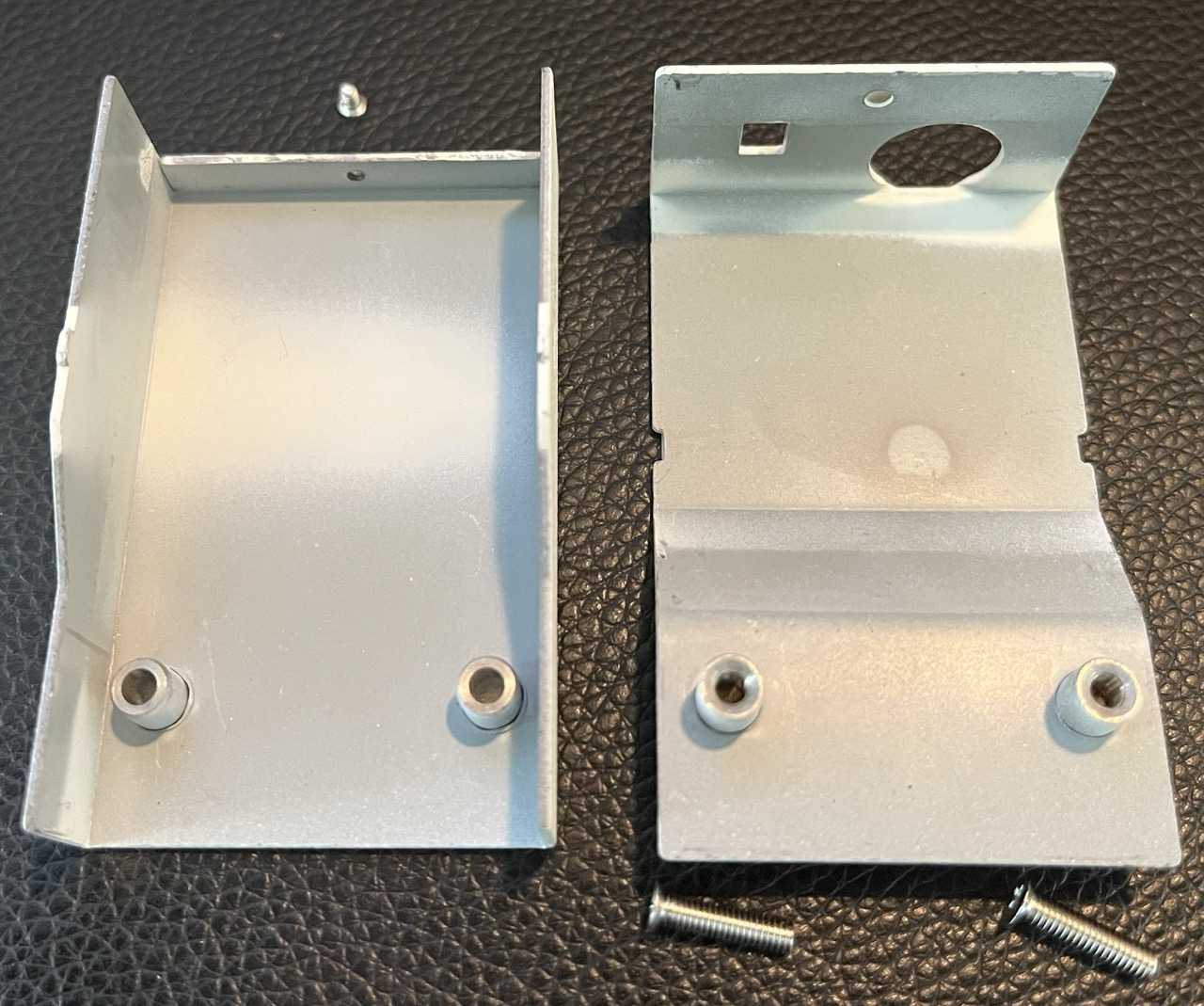

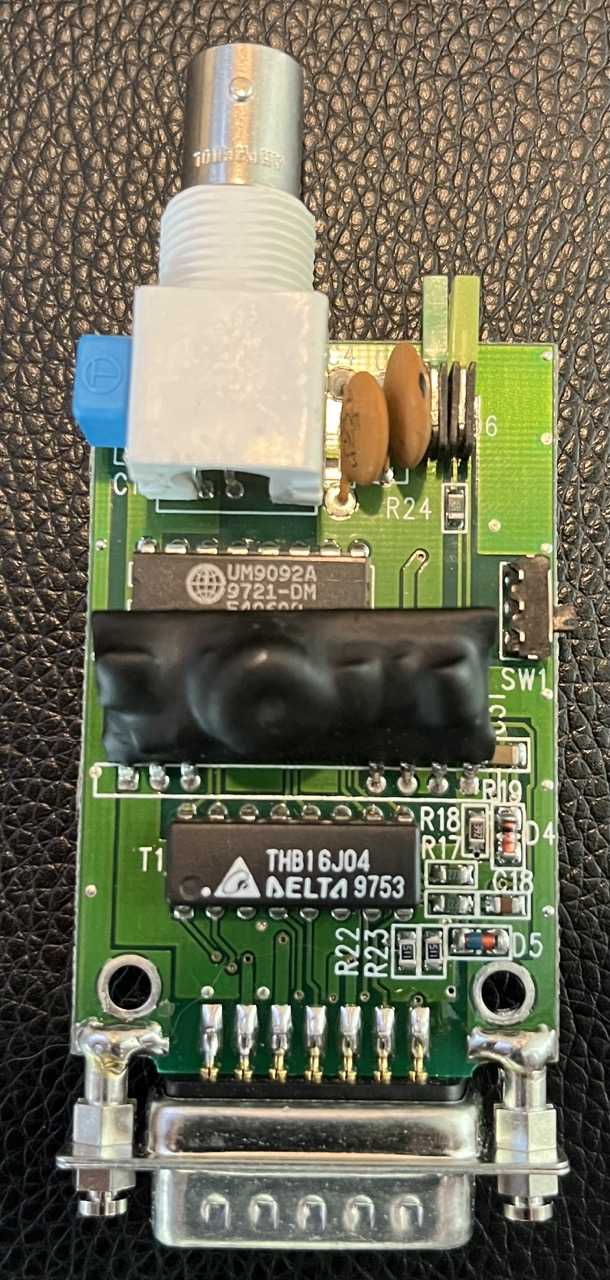

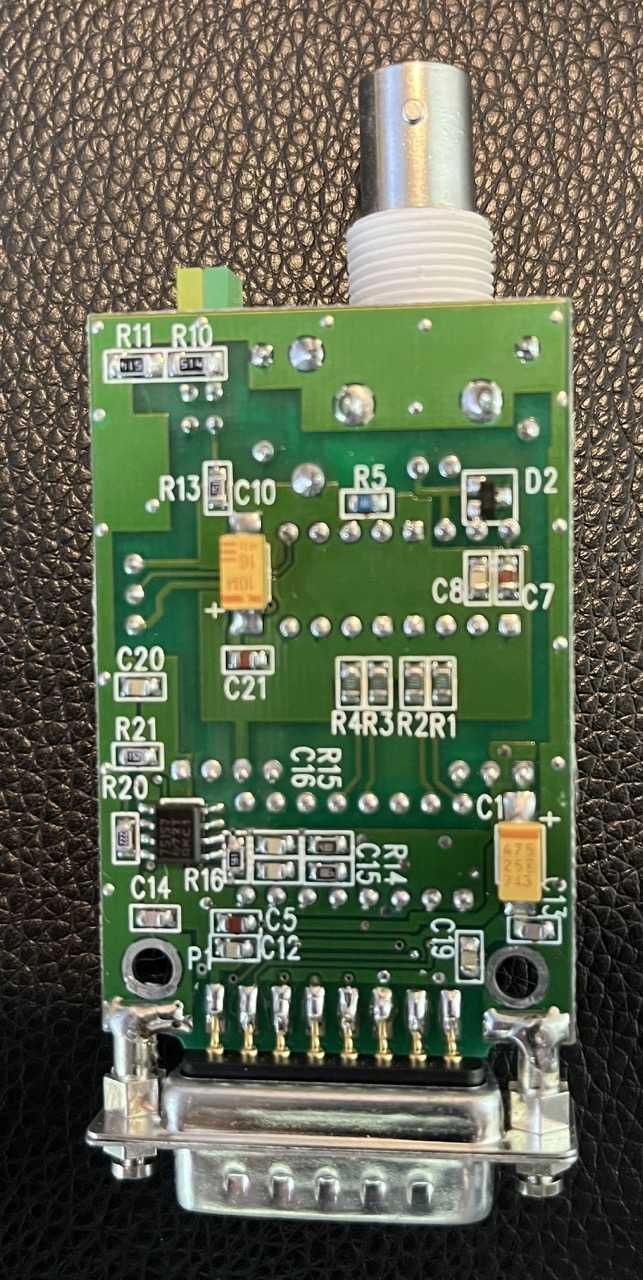

Majour components
- UM9092A - (DIP-16) 10base-2 Ethernet transceiver (DP8392 compatible)
- Delta THB16J04 - (DIP-16) Ethernet Transformer, 1:1, 80-130uH, Hi-Pot 500 Vrms
- Delta S12UA09 - (SIP-14) Transformer (maybe compatible with MPD2S002, BX8383, BKO-CA1245)
- 74157 - (SOIC-8 on rear) Dual Differential Line Receiver
- Diode D2 - unknown
